Mini CoveLine 2
Low-Profile Interior Luminaire

Mini CoveLine 2

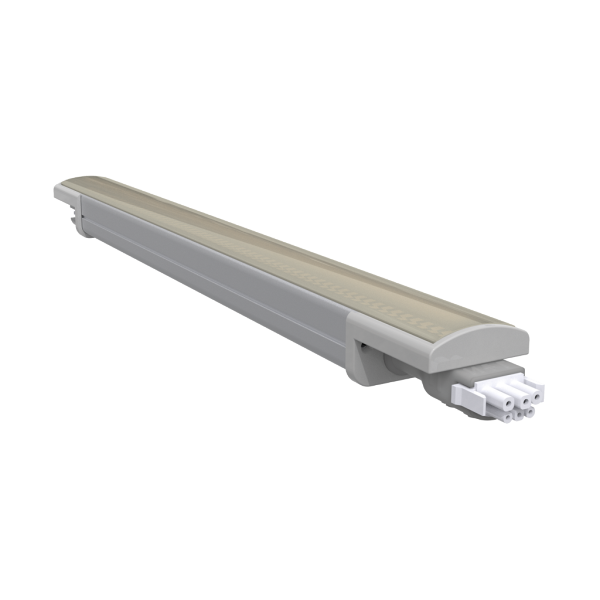

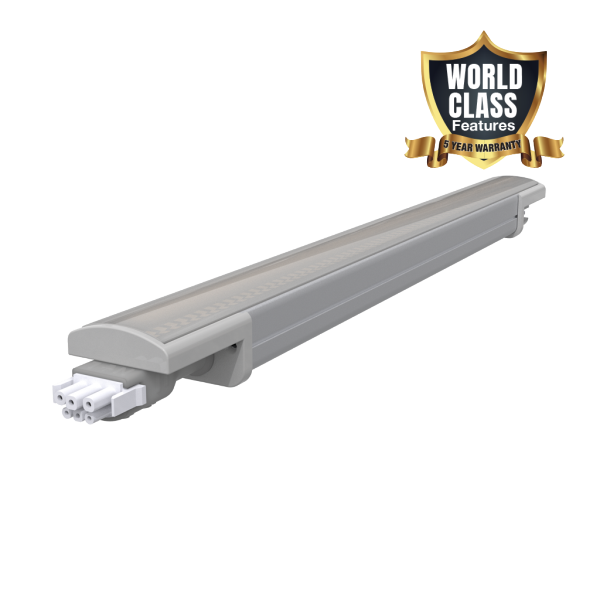

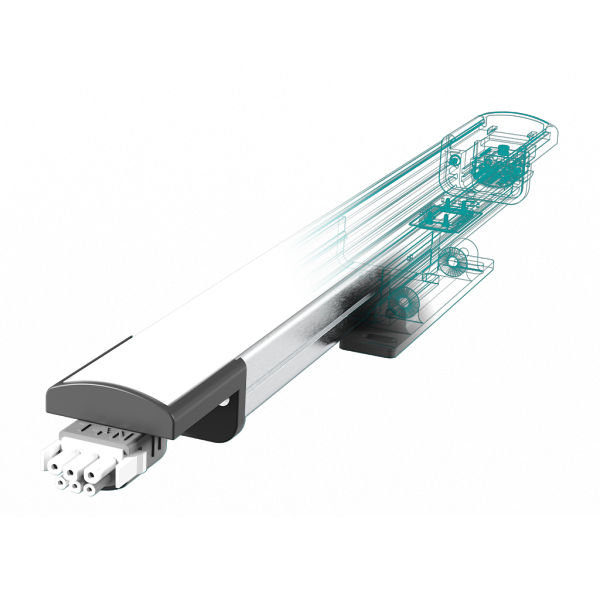

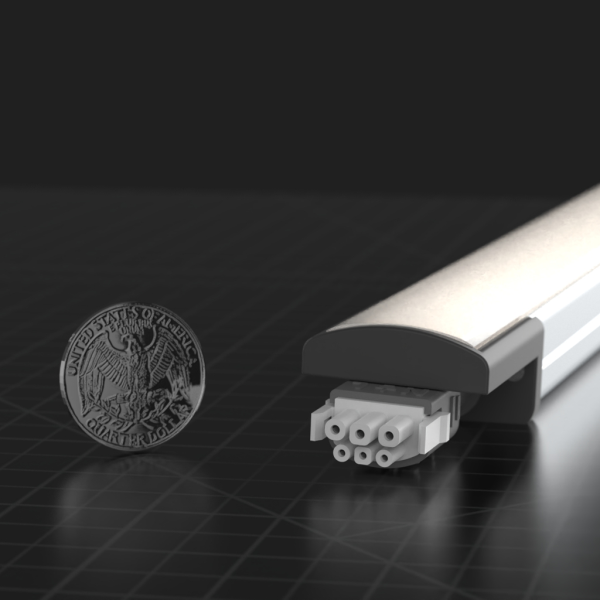

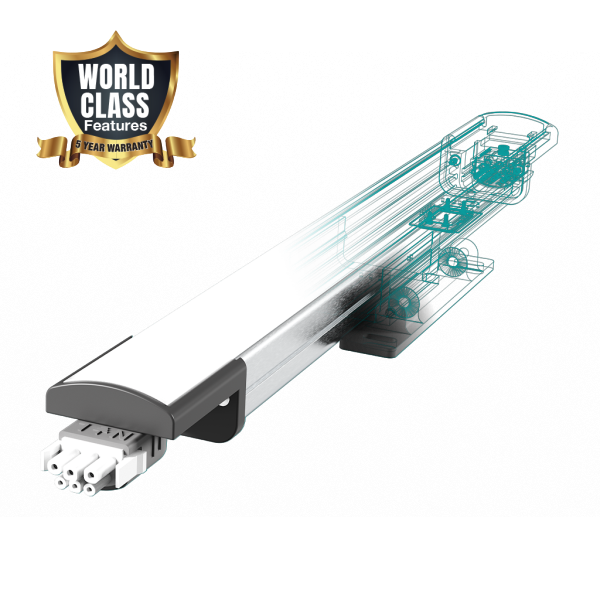

The Mini CoveLine 2 is a very slim profile luminaire, less than 1 inch tall, that’s perfect for smaller spaces that require a maximum range of light output. Mini CoveLine 2 is available in 1 or 4 foot lengths with 27K, 3K, 35K or 4K color temperatures in 93 CRI. The housing is constructed of extruded aluminum with tooled end caps and is rated for dry and damp locations. It's Chicago Code Compliant meeting the standards for application use in Chicago, IL and features Plug N' Play connectors for easy installation. Standard bracket has 135 degree rotation capability for adjusting beam direction. Flicker free dimmable to <1% full brightness with 0-10V dimming.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Mini CoveLine 2
Mini CoveLine 2
Mini CoveLine 2
Mini CoveLine 2
Mini CoveLine 2
Mini CoveLine 2
Mini CoveLine 2
Mini CoveLine 2Mini CoveLine 2Mini CoveLine 2Mini CoveLine 2Mini CoveLine 2Mini CoveLine 2Mini CoveLine 2

FEATURES & BENEFITS


Performance
1250 lm/ft (4000K)
10W/ft

CCT
2700K
3000K
3500K
4000K

Power Input
UNV 120 - 277 VAC

Control
Dimmable to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off.

Mounting Options
Surface Mounting with 135° Rotation

Warranty
5-Year Limited Warranty

Optic Beam Options
40°
60°
120°
Wall Wash
