eCoveLine XL WET
Powerful, Versatile, and Economical Wet Cove

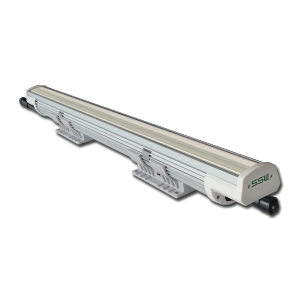

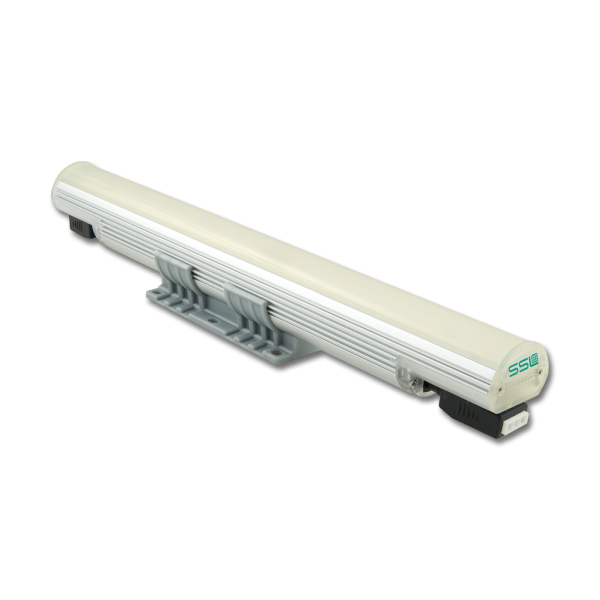

eCoveLine XL WET (ECVLXWET) is a powerful and versatile interior and exterior linear LED cove luminaire. eCoveLine XL WET comes in a 1, 4, and 6 ft nominal lengths and 2700K, 3000K, 3500K or 4000K color temperatures.  The housing is constructed of extruded aluminum with tooled end caps and is IP66 rated, suitable for interior and exterior wet, damp or dry location applications. Features IP68 line voltage Plug N’ Play connectors for easy installation. Universal orientation luminaire; up, down, horizontal or vertical positioning with two common optical solutions of 120° and 30° x 60°. Flicker free dimming to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off.
Spec Sheet
Spec Sheet Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
eCoveLine XL WET
eCoveLine XL WET
eCoveLine XL WET
eCoveLine XL WETeCoveLine XL WETeCoveLine XL WET

FEATURES & BENEFITS


Performance
785 lm/ft
745 lm/ft
706 lm/ft
510 lm/ft

CCT
2700K
3000K
3500K
4000K

Power Input
UNV 120 - 277 VAC

Control
Dimmable to 3% full brightness, electronic low-voltage (ELV) trailing edge, synchronized w/ soft shut-off.

Mounting Options
Universal orientation surface mounting with (+/– 15°) adjustable brackets, (optional ADB adj. bracket)

Warranty
5-Year Limited Warranty

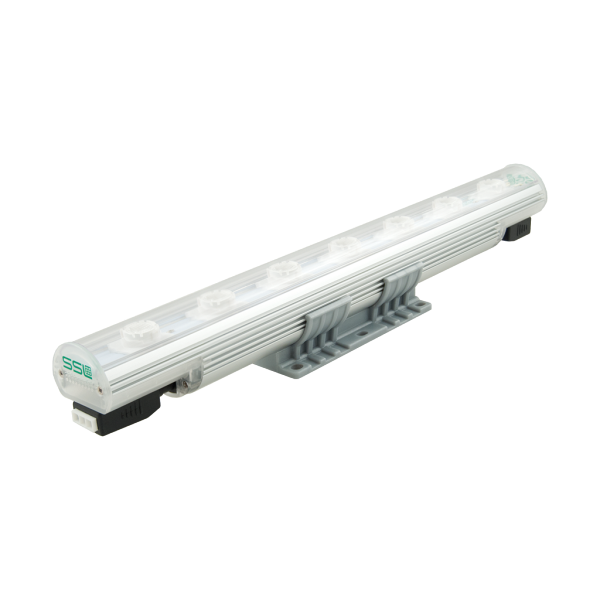

Optic Beam Options
120°
30° x 80°
